plotly::detail::WebsocketEndpointImpl Class Reference

Base implementation class for WebSocket endpoints. More...

#include <websockets_endpoint.hpp>

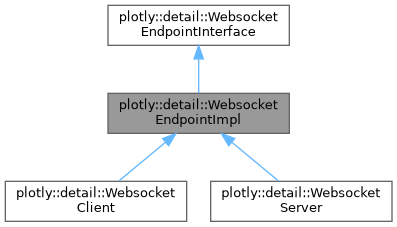

Inheritance diagram for plotly::detail::WebsocketEndpointImpl:

Collaboration diagram for plotly::detail::WebsocketEndpointImpl:

Public Member Functions
void	stopCallbackExecutor ()
	Stop the callback executor thread and clean up resources.
void	registerCallback (const std::string_view &eventName, callback_t callback) override
	Register a callback for a specific event (override)
void	unregisterCallback (const std::string_view &eventName) override
	Unregister a callback for a specific event (override)
Public Member Functions inherited from plotly::detail::WebsocketEndpointInterface
	WebsocketEndpointInterface ()
	Default constructor.
virtual	~WebsocketEndpointInterface ()
	Virtual destructor.
	WebsocketEndpointInterface (const WebsocketEndpointInterface &)=delete
	Copy constructor (deleted)
auto	operator= (const WebsocketEndpointInterface &) -> WebsocketEndpointInterface &=delete
	Copy assignment operator (deleted)
virtual auto	waitConnection (std::chrono::milliseconds timeout) const -> bool=0
	Wait for a connection to be established.
virtual auto	isConnected () const -> bool=0
	Check if the endpoint is currently connected.
virtual auto	send (const std::string_view &message) -> bool=0
	Send a message through the WebSocket connection.
virtual void	stop ()=0
	Stop the endpoint and clean up resources.
virtual auto	getName () const -> std::string=0
	Get the name/identifier of this endpoint.

Protected Member Functions
virtual void	serviceLoop ()=0
	Pure virtual method for the main service loop.
void	callbackExecutorLoop ()
	Main loop for the callback executor thread.
void	handleMessage (const std::string &message)
	Handle an incoming message by queuing it for callback processing.
void	startCallbackExecutor ()
	Start the callback executor thread.

Protected Attributes
std::atomic< bool >	running {false}
	Atomic flag indicating if the endpoint is running.
std::thread	serviceThread
	Service thread for handling WebSocket operations.
std::mutex	recvMessagesMutex
	Mutex protecting the received messages queue.
std::condition_variable	recvMessagesCv
	Condition variable for notifying about new received messages.
std::queue< std::string >	recvMessages
	Queue of received messages waiting to be processed.
std::mutex	callbackMutex
	Mutex protecting the callbacks map.
std::unordered_map< std::string, callback_t >	callbacks
	Map of event names to their associated callback functions.
std::thread	callbackExecutorThread
	Thread for executing callbacks.

Additional Inherited Members
Public Types inherited from plotly::detail::WebsocketEndpointInterface
using	callback_t = std::function<void(const std::string_view &)>
	Callback function type for handling incoming messages.

Detailed Description

Base implementation class for WebSocket endpoints.

This class provides a concrete implementation of the WebsocketEndpointInterface with common functionality shared between client and server endpoints. It handles message queuing, callback management, and threading infrastructure.

The implementation uses a multi-threaded design:

• A service thread for handling WebSocket operations (derived classes implement serviceLoop)
• A callback executor thread for processing incoming messages and invoking callbacks
• Thread-safe message queuing between the service and callback threads

Derived classes need to implement the pure virtual serviceLoop() method to provide specific client or server behavior.

Member Function Documentation

callbackExecutorLoop()

void plotly::detail::WebsocketEndpointImpl::callbackExecutorLoop ( )

protected

Main loop for the callback executor thread.

This method runs in the callback executor thread and processes received messages by invoking the appropriate registered callbacks.

handleMessage()

void plotly::detail::WebsocketEndpointImpl::handleMessage ( const std::string & message )

protected

Handle an incoming message by queuing it for callback processing.

Parameters

message

The received message to handle

This method is called by the service thread to queue received messages for processing by the callback executor thread.

registerCallback()

void plotly::detail::WebsocketEndpointImpl::registerCallback ( const std::string_view & eventName, callback_t callback )

overridevirtual

Register a callback for a specific event (override)

Parameters

eventName	The name of the event to listen for
callback	The callback function to invoke when the event occurs

This implementation stores the callback in the callbacks map in a thread-safe manner using the callback mutex.

Implements plotly::detail::WebsocketEndpointInterface.

serviceLoop()

virtual void plotly::detail::WebsocketEndpointImpl::serviceLoop ( )

protectedpure virtual

Pure virtual method for the main service loop.

Derived classes must implement this method to provide specific WebSocket client or server behavior. This method runs in the service thread and should handle connection management and message reception.

Implemented in plotly::detail::WebsocketClient, and plotly::detail::WebsocketServer.

startCallbackExecutor()

void plotly::detail::WebsocketEndpointImpl::startCallbackExecutor ( )

protected

Start the callback executor thread.

This method initializes and starts the callback executor thread that processes incoming messages and invokes registered callbacks.

stopCallbackExecutor()

void plotly::detail::WebsocketEndpointImpl::stopCallbackExecutor

(

)

Stop the callback executor thread and clean up resources.

This method stops the callback executor thread and performs necessary cleanup. It's called automatically by the destructor but can also be called explicitly if needed.

unregisterCallback()

void plotly::detail::WebsocketEndpointImpl::unregisterCallback ( const std::string_view & eventName )

overridevirtual

Unregister a callback for a specific event (override)

Parameters

eventName

The name of the event to stop listening for

This implementation removes the callback from the callbacks map in a thread-safe manner using the callback mutex.

Implements plotly::detail::WebsocketEndpointInterface.

Member Data Documentation

callbackExecutorThread

std::thread plotly::detail::WebsocketEndpointImpl::callbackExecutorThread

protected

Thread for executing callbacks.

callbackMutex

std::mutex plotly::detail::WebsocketEndpointImpl::callbackMutex

protected

Mutex protecting the callbacks map.

callbacks

std::unordered_map<std::string, callback_t> plotly::detail::WebsocketEndpointImpl::callbacks

protected

Map of event names to their associated callback functions.

recvMessages

std::queue<std::string> plotly::detail::WebsocketEndpointImpl::recvMessages

protected

Queue of received messages waiting to be processed.

recvMessagesCv

std::condition_variable plotly::detail::WebsocketEndpointImpl::recvMessagesCv

protected

Condition variable for notifying about new received messages.

recvMessagesMutex

std::mutex plotly::detail::WebsocketEndpointImpl::recvMessagesMutex

protected

Mutex protecting the received messages queue.

running

std::atomic<bool> plotly::detail::WebsocketEndpointImpl::running {false}

protected

Atomic flag indicating if the endpoint is running.

serviceThread

std::thread plotly::detail::WebsocketEndpointImpl::serviceThread

protected

Service thread for handling WebSocket operations.

---

The documentation for this class was generated from the following files:

• src/detail/websockets_endpoint.hpp
• src/detail/websockets_endpoint.cpp
