Plotly.cpp API Documentation

Overview

Plotly.cpp brings the power of Plotly.js to C++. This library provides a modern C++ interface for creating interactive data visualizations with real-time updates, event handling, and export capabilities.

Plotly.cpp Demo

Key Features

• 🔗 Plotly.js API Mapping - Translation of most Plotly.js methods

Plotly.js API Mapping

• 🎨 Advanced Visualizations - Rich variety of plot types. See gallery for more examples.

Advanced Visualizations

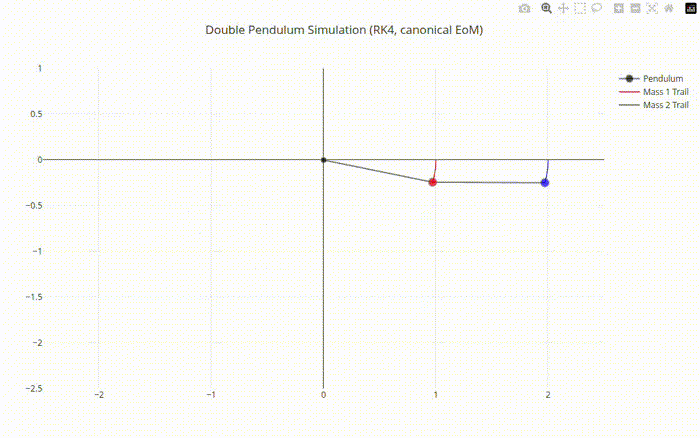

• ⚡ Real-Time Updates - Stream data with smooth animations and live updates

Real-Time Updates

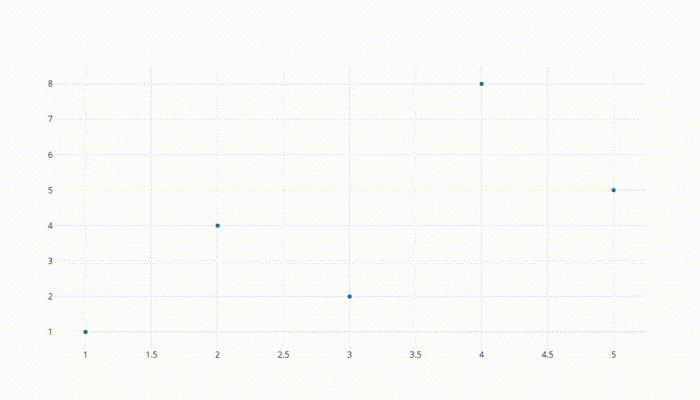

• 🔄 Bidirectional Events - Handle user interactions from C++

Bidirectional Events

Installation & Quick Start

Prerequisites

• Ubuntu Linux (tested platform)
• Chrome/Chromium browser
• C++17 or higher

Installation

Install from deb package (Recommended)

wget https://github.com/yhisaki/plotly.cpp/releases/download/v0.1.0/libplotly-cpp-0.1.0-Linux.deb
sudo apt install ./libplotly-cpp-0.1.0-Linux.deb

Install from FetchContent

Add to your CMake project using FetchContent:

include(FetchContent)

FetchContent_Declare(
    plotly-cpp
    GIT_REPOSITORY https://github.com/yhisaki/plotly.cpp.git
    GIT_TAG v0.1.0
)

FetchContent_MakeAvailable(plotly-cpp)

Usage

After installation, add the following to your CMakeLists.txt:

find_package(plotly-cpp REQUIRED)

target_link_libraries(your_target plotly-cpp::plotly-cpp)

Dependencies

Plotly.cpp requires the following dependencies:

• nlohmann/json - JSON serialization/deserialization. You can install it by sudo apt install nlohmann-json3-dev.

Architecture

The library uses a client-server architecture:

1. C++ Backend - Your application using plotly::Figure
   • WebSocket server for real-time communication
   • HTTP server serving the web frontend
   • JSON-RPC protocol for structured messaging
2. JavaScript Frontend - Browser-based rendering engine
   • Plotly.js runtime for visualization
   • Event bridge for user interactions

You can find more details in Architecture Overview.

Simple Example

#include "plotly/plotly.hpp"

int main() {
    plotly::Figure fig;
    fig.openBrowser();

    std::vector<double> x = {1, 2, 3, 4, 5};
    std::vector<double> y = {1, 4, 2, 8, 5};

    plotly::Object trace = {
        {"x", x}, {"y", y},
        {"type", "scatter"},
        {"mode", "lines+markers"}
    };

    plotly::Object layout = {{"title", {{"text", "Hello World!"}}}};

    fig.newPlot(plotly::Array{trace}, layout);
    fig.waitClose();
    return 0;
}

Hello World

Core Classes

Class	Description
plotly::Figure	Main plotting interface - your primary entry point
plotly::Object	JSON-compatible data container (nlohmann::json alias)

Essential Methods

Method	JavaScript Equivalent	Purpose
plotly::Figure::newPlot()	Plotly.newPlot()	Create new plot
plotly::Figure::update()	Plotly.update()	Update data & layout
plotly::Figure::extendTraces()	Plotly.extendTraces()	Stream real-time data
plotly::Figure::on()	Event listeners	Handle user interactions

---

For complete examples and advanced usage, visit the project repository.
